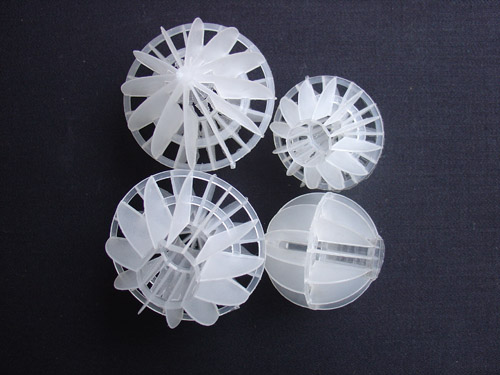

Plastic Polyhedral Hollow Ball Packing

Plastic Polyhedral Hollow Ball Packing

Feature: The surface of Hollow Ball Packing is larger than other packing. It has some advantages such as larger surface area, larger throughout, high void, high capacity.

Material: polypropylene, reinforced polypropylene, PVC, CPVC, PVDF

Plastic Polyhedral Hollow Ball Packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).

It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

Technical data

Specification (mm)	Surface area (m²/m³)	Free volume (%)	Bulk density (kg/m³)	Number per m³
ø25	460	84	145	64000
ø38	325	87	125	25000
ø50	236	90	105	11500
ø76	150	92	90	3000

7 years experience in producing Polyhedral Hollow Ball Packing,

Size : 25mm 38mm 50mm 76mm

Material: PP PE PVC CPVC PVDF etc
