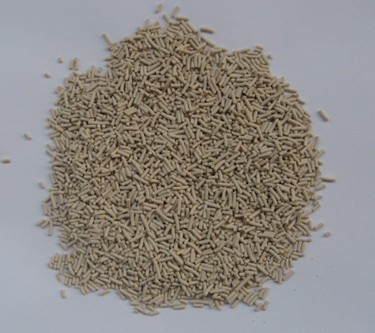

Molecular sieve 13X APG
Molecular sieve 13X APG is specially designed to co-absorb CO2 and H2O for air cryo-separation industry. Molecular sieve 13X APG has largeer capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation, Molecular sieve 13X APG is suitable for any air cryo-separation plants of any size and any types in the world.
Typical Chemical Formula
 Na2O Al2O3 2.45SiO2 6.OH2O
SiO2 : Al2O3 ≈2.6-3.0
 Technical Parameter
| Item |
Unit
|
Technical data
|
|
Shape
|
|
Pellet
|
Sphere
|
|
Diameter
|
mm
|
1.5-1.7
|
3.0-3.3
|
1.7-2.5
|
3.0-5.0
|
|
Size ratio up to grade
|
%
|
≥98
|
≥98
|
≥96
|
≥96
|
|
Bulk density
|
g/ml
|
≥0.62
|
≥0.61
|
≥0.64
|
≥0.64
|
|
Wear ratio
|
%
|
≤0.20
|
≤0.20
|
≤0.10
|
≤0.10
|
|
Crushing strength
|
N
|
≥30/cm
|
≥70/cm
|
≥50/piece
|
≥70/piece
|
|
Static water adsorption
|
%
|
≥27
|
≥27
|
≥27
|
≥27
|
|
CO2 adsorption
|
%
|
≥18.5
|
≥18.5
|
≥18.5
|
≥18.5
|
|
Water content, as shipped
|
%
|
≤1.5
|
≤1.5
|
≤1.5
|
≤1.5
|
Typical applications
Removal of H2O from air fro air cryo-separation application.
Size
13X APG- Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6”, 3.2”.
Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
|
