1. Product Description

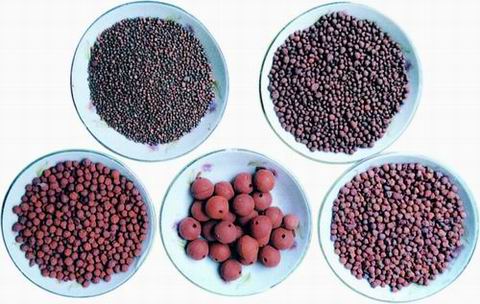

Ceramic grain filters are made of refined pottery clays added with certain modifiers, and processed of grinding, mixing, shaping and high temperature sintering. They do not contain any substances that harmful to people or environment. They are hard and rough in surface, porous inside the structure, and have the advantages of high mechanical strength, large specific surface area and porosity. When used in water treatment, they behave a activated surface property, a great amount of pollutant entrapment, less water head loss in the filter bed, lower consumption of back-flush water, stable in chemical and biologic property, and long service life. Ceramic grain filters is a new and efficient filter material to increase the water yield, upgrade the water quality and save chemicals and energy.
2. Chemical Composition of Ceramic Sand Filters
|
Composition
|
Content %
|
|
SiO2
|
50-70％
|
|
Al2O3
|
15-25％
|
|
Fe2O3
|
0.5-10％
|
|
CaO
|
1-5％
|
|
MgO
|
1-5％
|
|
KO2+NaO
|
3-8％
|
|
The balance
|
≤ 2
|
3. Technical Indexes of Ceramic Grain Filters
|
Item
|
Index
|
|
Appearance
|
Rough ball, porous, red & brown
|
|
Grain diameter，mm
|
0.5-30
|
|
Apparent Density,g/cm3
|
1.2-1.6
|
|
Bulk density,g/cm3
|
0.6-1.2
|
|
Total porosity,%
|
60-80
|
|
Specific surface area,cm2/g
|
5000-10000
|
|
Attrition & crushing rate,%
|
≤2
|
|
Even coefficient
|
K80=1.2-1.5
|
|
Even coefficient
|
K80=1.0-1.3
|
|
Solubility in acid,%
|
≤2
|
|
Solubility in alkali,%
|
≤1.5
|
|
Soluble substance
|
No any harmful elements contained
|
4. Product Size(mm): Φ1-2，Φ3-5，Φ5-6，Φ6-8，Φ8-9，Φ9-10，Φ10-12，Φ13-15， Φ16-20，Φ21-30
|
