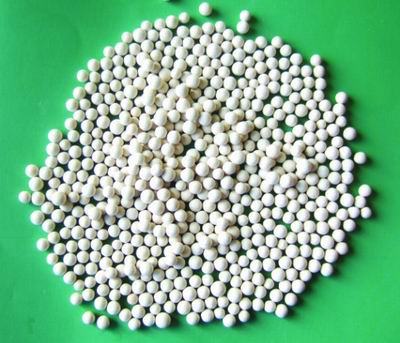

PSR Sulfur recovery catalyst

1. Product Description PSR Sulfur recovery catalyst is used to treat with the acid gases containing H2S for the sake of recovery sulfur element and environmental protection in oil refinery, chemical factory, iron & steel plant and natural gas treatment processes. The conversion of sulfur can reach to 65-75% in an ordinary bumer.92-95% it react by two stages clause processes. Furthermore to higher than 98% if by three clause reactors.     2. Technical Specification              Type  Item PSR-1 PSR-21 PSR-31 PSR-41 PSR-51 Size & Shape mm Φ4-6  Ball Φ4-6 Ball Φ4×5-15 Bar Φ4-6  Balls Φ3×4-15  Trifolium  color White  White  White  Brown  Blue Main contents ％ Al2O3≥93 Na2O≤0.3 Al2O3≥85 TiO2 3-6 TiO2≥85 Al2O3≥80 FeO≥6 CoO 2.5-3.0 MoO3 10-11 Bulk density g/ml 0.65-0.72 0.72-0.75 0.85-1.0 0.70-0.82 0.65-0.80 Active surface m2/g ≥300 ≥260 ≥100 ≥260 ≥200 Pore volume  ml/g ≥0.4 ≥0.4 - - - Crushing strength N ≥150 ≥140 ≥100 ≥140 ≥160 Abrasion loss % ≤0.3 ≤0.3 ≤1 ≤0.3 ≤1.0 Major function Universal catalyst for sulfur recovery in acid gas With high hydrolysis and conversion of COS and CS2 Catalyst with high sulfate resistance and conversion Catalyst with protection of oxygen leakage Catalyst for Tail gas hydrotreating
