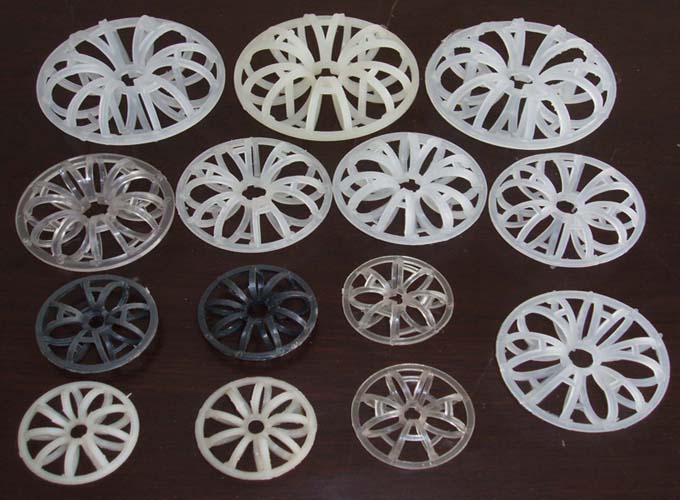

Teller Rosetter ring, Tellerette ring, Tellerette
Product parameters:
We have produced and sold successfully plastic packing TELLERETTE as used for gas scrubbing for over twenty years. As this packing has excellent features of mass and heat transfer efficiency for gas absorption, air conditioning, etc., it has been used as packing of high corrosion resistance and low pressure drop with extensive application for Gas Absorber, Cooling Tower, Deaerator, Reactor and other gas-liquid contact systems. Various data on equilibrium, design and materials based on a long experience in using the packing are available on request.
| Spec. |
D*H*T(mm) |
Number per m³ |
Bulk density (Kg/m³) |
Surface area (m²/m³) |
Free volume (%) |
| Dg25 |
25*9 |
170000 |
90 |
195 |
82 |
| Dg47 |
47*19 |
32500 |
111 |
185 |
88 |
| Dg51 |
51*19 |
23500 |
103 |
180 |
98 |
| Dg59 |
59*19 |
17500 |
72 |
150 |
92 |
| Dg73 |
73*28 |
8000 |
80 |
127 |
89 |
| Dg95 |
95*37 |
3900 |
78 |
94 |
90 |
| Dg145 |
145*48 |
1100 |
48 |
65 |
95 |
|
