ceramic intalox saddles

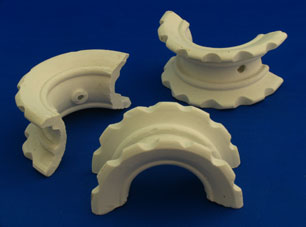

Ceramic Super Intalox saddles (or Ceramic super saddles for short, similar to Koch INTALOX) are the most frequently used high-performance packing which exhibit advantages for most applications in comparison with other packing of different shapes.  Ceramic super saddles' smooth surface imparts a high chemical resistance and provides them with a high level of stability.  Due to their simple form,  AceChemPack Ceramic Super Intalox saddles can be produced at a relatively low cost.

Applications:

Ceramic Super Intalox saddles  ( similar to Koch-Glitsch INTALOX) are widely used as Regenerative Thermal oxidizers, Acid Gas Scrubbers, Dryer Towers, Tail Gas Scrubbers and Impasse Towers

Chemical composition

SiO2	Al2O3	Fe2O3	CaO	MgO	K2O+N2O	Other
>73%	17-23%	<1.0%	<0.5%	<0.5%	2-4%	><0.1%

Ceramics Saddle applied to RTO

Ceramic Saddles for RTO application.

Geometric Properties of RTO saddles

Nominal Size	Approx.weight		Surface area		Void fraction (%)	Packing factor(1/ft)
	Lb/cu.ft	Kg/m3	Ft2/ft3	M2/m3
1/2”	45	720	190	623	71.7	200
3/4”	43	688	102	334	73	130
1”	43	688	77	253	73	85
1.5”	40	640	50	164	75	50
2”	36	577	35	115	77.4	37
3”	39	623	28	92	75.5	24

Physical properties

Index	Value
Specific gravity,g/cm3	2.25-2.35
Water absorption,%	<0.5
Acid-resisting strength, %Wt.Loss(ASTMc279)	<4
Firing temperature, ℃	1280-1320
Softening point, ℃	>1400
Density, lbs/cuft or kg/m3	145 or 2350

Chemical composition

SiO2	Al2O3	Fe2O3	CaO	K2O+N2O
>70%	23-30%	<1%	1-2%	2-4%
