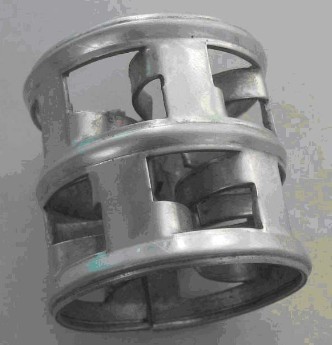

Flexiring packing
T.C.I Flexiring Random packing has good capacit and low pressure drop,
Higher liquid hold and residence time, Flexiring also has Lower sensitivity
to liquid and vapor distribution quality allows use with conventional
liquid distributors. Flexiring is similar to Pall rings.
Physical properties of plastic Flexirings:
|
D*H*T (inch)
|
D*H*T (mm)
|
Number per m³
|
Bulk density (kg/m³)
|
Surface area (m²/m³)
|
Free volume (%)
|
F factor (m-1)
|
|
5/8″
|
16*16*1.0
|
177600
|
96
|
274
|
90
|
376
|
|
1″
|
25*25*1.2
|
48300
|
85
|
213
|
91
|
285
|
|
1.5″
|
38*38*1.4
|
15800
|
82
|
151
|
91
|
200
|
|
2″
|
50*50*1.5
|
6300
|
76
|
100
|
91.5
|
130
|
|
3″
|
76*76*2.0
|
1830
|
73
|
72
|
92
|
92
|
（Polypropylene material just for reference）
Flexirings Materials: PP, PVC, CPVC, PVDF, PTFE, PE, carbon steel, 1Cr18Ni9Ti, stainless 304, 304L, 410, 316, 316L,904L, alloy steel materiasl and so on.
Flexirings Application: Widely used in Adsorption, Steaming and Distilling performace, oil refinery, petrochemical industry, chemical industry and air pollution control etc., and also contracts anticorrosion engineering and environmental protection
|
