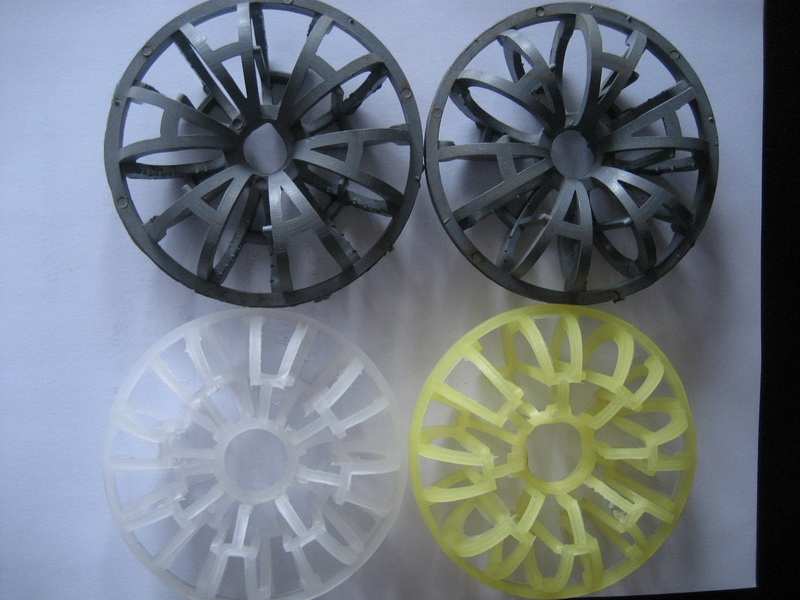

Tellerette 3R, PVC Tellerette 3R, CPVC tellerette 3R, PP+glass filled Tellerette 3R
Tellerette 3R is designed by Tell A J who. Plastic tellerette rosette ring is also called teller ring or rosette ring. TCI Tellerette 3R can be widely applied in refining and washing tower for water treatment,air polution treatment, Heat transfering, absorption, liquid extraction etc. And we could supply different materials for Tellerette 3R such as polyethlene(PE) , polypropylene(PP), reinforced polypropylene(RPP), polyvinyl chloride(PVC), chlorinated polyvinyl chloride(CPVC) and polyvinylidene fluoride(PVDF) based on different application requirements.
Adventages for Tellerette 3R:
Lower pressure drop, energy saving, high mass transfer efficiency.
PP Tellerrette Rosette ring specifications:
| Specification |
Specific area |
Void space |
No.elements |
Bulk density |
| inch |
mm |
m2/m3 |
% |
Pieces/m³ |
Kg/m³ |
| 1″ |
25×9×(1.5×2) |
195 |
0.82 |
170000 |
90 |
| 2″ |
47×19×(3×3) |
185 |
0.88 |
32500 |
111 |
| 2″ |
51×19×(3×3) |
180 |
0.89 |
25000 |
62.5 |
| 3″ |
73×28×(3×4) |
127 |
0.89 |
8000 |
52 |
|
3.5″
Tellerette 3R
|
95×37×(3×6) |
94 |
0.9 |
3900 |
88 |
| 6″ |
145×48×(3×6) |
65 |
0.95 |
1100 |
47 |
The above technical data sheet is for Polypropylene material, if you need
data sheet for other material, please kindly contact us: [email protected]
|
