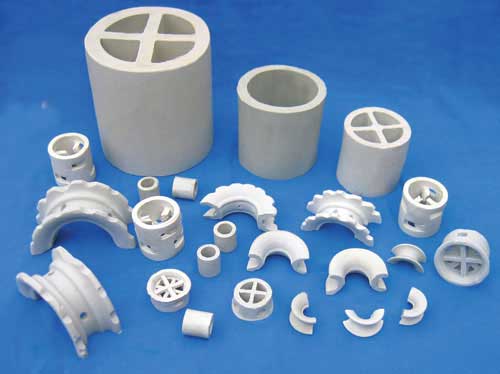

Ceramic Random Packing

Ceramic random packing has excellent acid resistance and heat resistance. It can stand up to corrosion of various inorganic acids, organic acids and organic solvents except HF and can be used in high or low temperature, It can be used as drying,absorbing, cooling and regenerating tower packing in chemical, metallurgic, coal gas and air separation industry etc.

Main specification

Name	Size mm	Specific area m2/m3	Void volume m3/m3	Bulk density kg/m3	Number per volume n/m3
Raschig ring	25×25×2.5	190	0.78	505	49000
	50×50×5	93	0.81	457	6000
Cross-partiton	80×8	120	0.54	916	1950
	100×10	110	0.53	930	1000
	150×15	60	0.58	960	296
Pall ring	25×20×3	190	0.75	580	76933
	38×30×4	131	0.78	490	15400
	50×42×5	88.4	0.79	454	6450
	76×53×9	58.5	0.80	420	1976
Uramic intalox	Ф25×25×3	220	0.73	620	40500
	Ф50×50×3	120	0.78	550	6800
saddles ring	25×20×3	200	0.727	602	58230
	16×12×3	378	0.71	686	269900
Cascade ring	25×20×3	270	0.74	624	74000
	50×30×5	108.8	0.787	516	9091
Conjuate ring	38×38×4	118	0.80	540	13950
	50×50×5	72	0.80	490	6806
3Y ring	25×13×2	240	0.72	850	87040
	38×20×3.5	160	0.75	770	27600
	56×30×4.5	138	0.75	740	10100
Trough ring	ACP-25	251	0.77	550	23000
	ACP-38	140	0.82	430	18000
	ACP-50	106	0.84	380	12500

packing standard

1. Export bag packing  (25KG/bag&50KG/bag)

2. Wood salver packing (0.8-1.2m³/bag)
