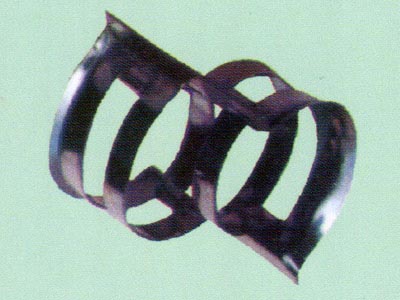

Conjugated Ring

Features:

Conjugated ring is developed by Huanan College of Science and Engineering and features low pressure drop, high through-put and high mass transfer efficiency.

ITEM NO.	DESCR PTION	NOMINAL DIMENSION (mm)	OUTSIDE DIAMETER & HEIGHT (mm)	UNIT VOLUME (rings/m3)	STACK SPECIFIC GRAVITY (kg/m3)	SPECIFIC SURFACE AREA (m2/m3)	VOID VOLUME (m3/m3)	REMARKS
1	conjugated ring	25	25×25	75000	95	295	0.953	PLASTIC
2	conjugated ring	38	38×38	19500	78	117	0.957	PLASTIC
3	conjugated ring	50	50×50	9770	71	154	0.962	PLASTIC
4	conjugated ring	16	16×16	248000	446	460	0.935	δ=0.5
5	conjugated ring	25	25×25	82500	372	320	0.96	δ=0.5
6	conjugated ring	38	38×38	21500	287	210	0.975	δ=0.6
7	conjugated ring	50	50×50	9900	246	170	0.98	δ=0.8
