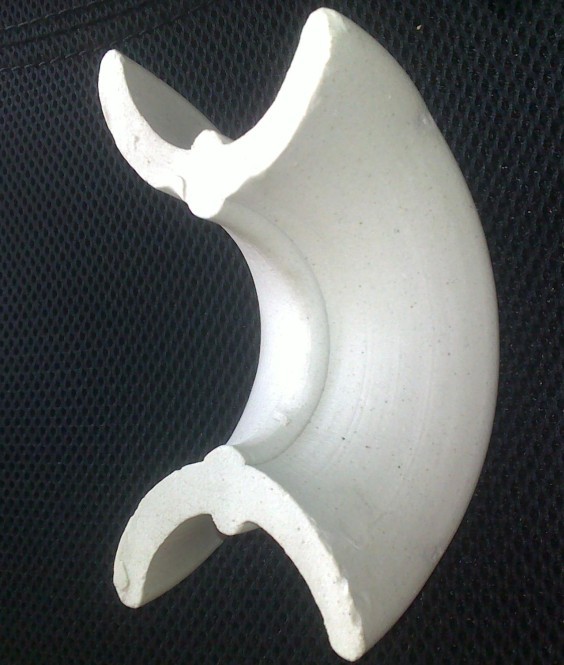

Ceramic intalox saddle ring
The ceramic saddle ring have excellent acid resistance and heat resistance. It can resist to corrosion
of various inorganic acids, organic acids and organic solvents except hydrofluoric acid and can be used
in high or low temperature conditions. Consequently the application range is very wide. The packing
can be used in the dry towers, absorbing towers, cooling towers, scrubbing towers and actifier towers
in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Technical data:
|
Type
|
Dimension
d x h x δ
|
Bulk Quantity
pcs/m3
|
Bulk Density kg/m3
|
Surface Area
m2/m3
|
Void
%
|
F Factor
m-1
|
|
76
|
119 x 53 x 9
|
2400
|
537.7
|
76.3
|
75.2
|
179.4
|
|
50
|
80 x 42 x 6
|
8234
|
470
|
105.4
|
79.1
|
212.9
|
|
38
|
60 x 30 x 4
|
19680
|
502
|
131
|
80.4
|
252
|
|
25
|
40 x 20 x 3
|
58230
|
544
|
200
|
77.2
|
434.6
|
|
16
|
25 x 12 x 2.2
|
269900
|
686
|
378
|
71
|
1056
|
* Data sheet for ceramic saddle rings
|
