Ceramic pall ring,Raschig ring,Saddle ring,CMR

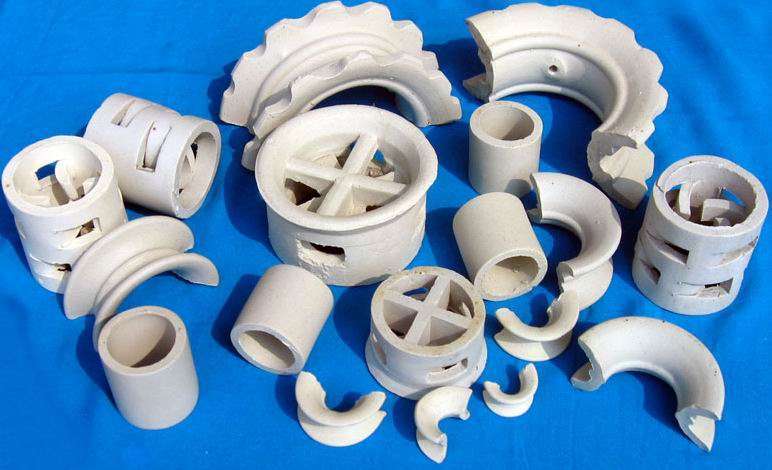

Ceramic random packing (we TCI can make Ceramic pall ring, Ceramic Raschig ring,
Ceramic Saddle ring, Ceramic Super saddle ring, Ceramic Glitch CMR ring,etc)
has excellent acid resiseance and heat resistance. It can stand up to corrosion of various
inorganic acids, organic acids and organic solvents except HF and can be used in high
or low temperature, It can be used as drying,absorbing, cooling and regenerating tower
packing in chemical, metallurgic, coal gas and air separation industry.etc.

SiO2	Al2O3	SiO2+ Al2O3	Fe2O3	CaO	MgO	K2O+Na2O	Inne
>69%	15-23%	>92%	<1%	<0,25%	<0,2%	2-4%	<0,1%

Ceramic random tower packing    Main specification：

Name Type Diameter×Height×Thickness mm Surface Area m2/m3 Void Space % Bulk Density Kg/m3 No.elements n/m3 Packing Factor m-1 Rasching ring Φ16 16×16×3 250 66 820 178000 870 Φ25 25×25×3 147 78 510 42000 310 Φ38 38×38×4 100 80 458 12000 195 Φ50 50×50×5 80 81 465 5600 156 Φ76 76×76×9 62 75 575 1700 147 Cross-partition ring Φ50 50×50×5 135 50 520 5600 1080 Φ80 80×80×8 120 53 780 2100-2500 806 Φ100 100×100×10 110 56 750 900-1000 626 Φ150 150×150×15 60 58 680 270-300 308 Rasching ring Φ25 25×25×3 210 73 630 36000 540 Φ38 38×38×4 140 75 590 12000 332 Φ50 50×50×5 100 78 520 4900 210 Φ76 76×76×9 70 80 470 1500 137 Intalox saddles Φ16 16×2×2 450 70 710 382000 1311 Φ25 25×19×3 250 74 610 84000 617 Φ38 38×30×4 164 75 590 25000 389 Φ50 50×40×5 142 76 560 9300 323 Φ76 76×57×9 92 78 520 1800 194 Supper Intalox Φ25 25×19×3 160 78 530 52000 337 Φ38 38×30×4 102 80 480 16000 199 Φ50 50×40×5 88 81
